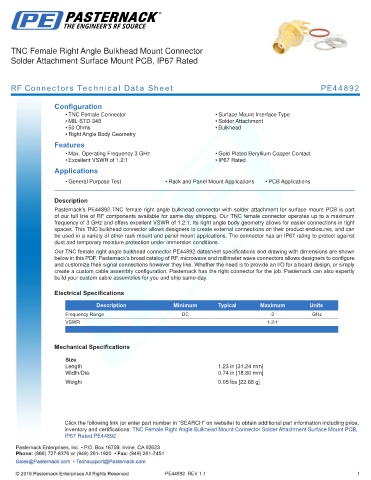

TNC Female Right Angle Bulkhead Mount Connector
Solder Attachment Surface Mount PCB, IP67 Rated

RF Connectors Technical Data Sheet PE44892

Configuration
• TNC Female Connector • Surface Mount Interface Type
• MIL-STD-348 • Solder Attachment
• 50 Ohms • Bulkhead
• Right Angle Body Geometry
Features
• Max. Operating Frequency 3 GHz • Gold Plated Beryllium Copper Contact
• Excellent VSWR of 1.2:1 • IP67 Rated
Applications

• General Purpose Test • Rack and Panel Mount Applications • PCB Applications
.
Description
Pasternack’s PE44892 TNC female right angle bulkhead connector with solder attachment for surface mount PCB is part
of our full line of RF components available for same-day shipping. Our TNC female connector operates up to a maximum
frequency of 3 GHz and offers excellent VSWR of 1.2:1. Its right angle body geometry allows for easier connections in tight
spaces. This TNC bulkhead connector allows designers to create external connections on their product enclosures, and can
be used in a variety of other rack mount and panel mount applications. The connector has an IP67 rating to protect against
dust and temporary moisture protection under immersion conditions.
Our TNC female right angle bulkhead connector PE44892 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.2:1
.

Mechanical Specifications
Size
Length 1.23 in [31.24 mm]
Width/Dia. 0.74 in [18.80 mm]
.
Weight 0.05 lbs [22.68 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female Right Angle Bulkhead Mount Connector Solder Attachment Surface Mount PCB,
IP67 Rated PE44892

PE44892 REV 1.1 1
