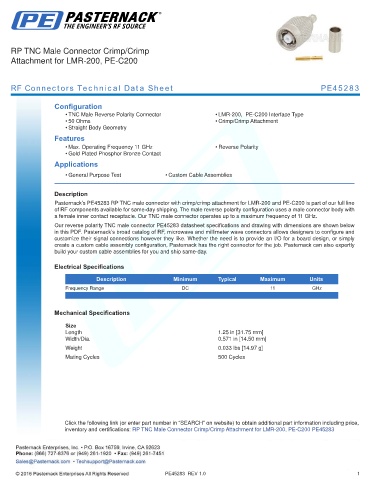

RP TNC Male Connector Crimp/Crimp
Attachment for LMR-200, PE-C200

RF Connectors Technical Data Sheet PE45283

Configuration
• TNC Male Reverse Polarity Connector • LMR-200, PE-C200 Interface Type
• 50 Ohms • Crimp/Crimp Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 11 GHz • Reverse Polarity
• Gold Plated Phosphor Bronze Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE45283 RP TNC male connector with crimp/crimp attachment for LMR-200 and PE-C200 is part of our full line
of RF components available for same-day shipping. The male reverse polarity configuration uses a male connector body with
a female inner contact receptacle. Our TNC male connector operates up to a maximum frequency of 11 GHz.
Our reverse polarity TNC male connector PE45283 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
.

Mechanical Specifications
Size
Length 1.25 in [31.75 mm]
Width/Dia. 0.571 in [14.50 mm]
.
Weight 0.033 lbs [14.97 g]
.
Mating Cycles 500 Cycles

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Male Connector Crimp/Crimp Attachment for LMR-200, PE-C200 PE45283

PE45283 REV 1.0 1
