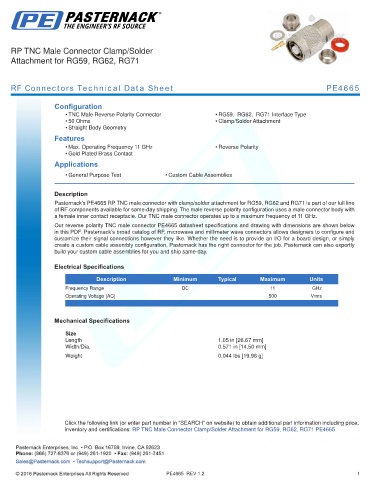

RP TNC Male Connector Clamp/Solder
Attachment for RG59, RG62, RG71

RF Connectors Technical Data Sheet PE4665

Configuration
• TNC Male Reverse Polarity Connector • RG59, RG62, RG71 Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 11 GHz • Reverse Polarity
• Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4665 RP TNC male connector with clamp/solder attachment for RG59, RG62 and RG71 is part of our full line
of RF components available for same-day shipping. The male reverse polarity configuration uses a male connector body with
a female inner contact receptacle. Our TNC male connector operates up to a maximum frequency of 11 GHz.
Our reverse polarity TNC male connector PE4665 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.05 in [26.67 mm]
Width/Dia. 0.571 in [14.50 mm]
.
Weight 0.044 lbs [19.96 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Male Connector Clamp/Solder Attachment for RG59, RG62, RG71 PE4665

PE4665 REV 1.2 1
