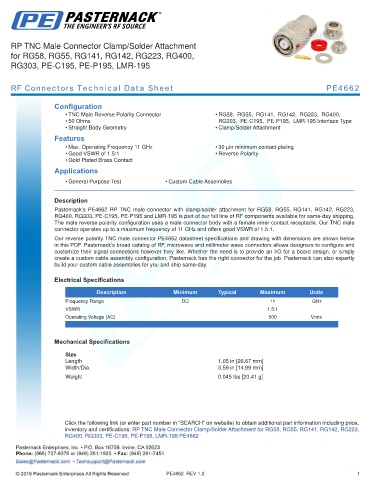

RP TNC Male Connector Clamp/Solder Attachment
for RG58, RG55, RG141, RG142, RG223, RG400,
RG303, PE-C195, PE-P195, LMR-195

RF Connectors Technical Data Sheet PE4662

Configuration
• TNC Male Reverse Polarity Connector • RG58, RG55, RG141, RG142, RG223, RG400,
• 50 Ohms RG303, PE-C195, PE-P195, LMR-195 Interface Type
• Straight Body Geometry • Clamp/Solder Attachment
Features
• Max. Operating Frequency 11 GHz • 30 µin minimum contact plating
• Good VSWR of 1.5:1 • Reverse Polarity
• Gold Plated Brass Contact
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4662 RP TNC male connector with clamp/solder attachment for RG58, RG55, RG141, RG142, RG223,
RG400, RG303, PE-C195, PE-P195 and LMR-195 is part of our full line of RF components available for same-day shipping.
The male reverse polarity configuration uses a male connector body with a female inner contact receptacle. Our TNC male
connector operates up to a maximum frequency of 11 GHz and offers good VSWR of 1.5:1.
Our reverse polarity TNC male connector PE4662 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.5:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications
Size
Length 1.05 in [26.67 mm]
Width/Dia. 0.59 in [14.99 mm]
.
Weight 0.045 lbs [20.41 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Male Connector Clamp/Solder Attachment for RG58, RG55, RG141, RG142, RG223,
RG400, RG303, PE-C195, PE-P195, LMR-195 PE4662
