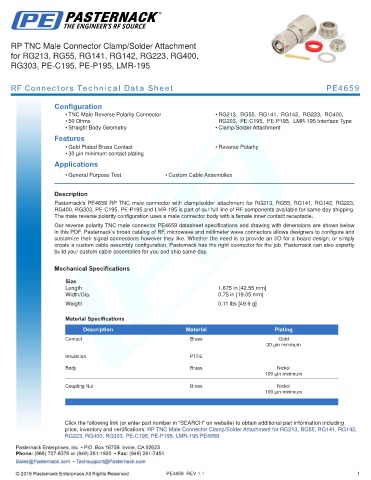

RP TNC Male Connector Clamp/Solder Attachment
for RG213, RG55, RG141, RG142, RG223, RG400,
RG303, PE-C195, PE-P195, LMR-195

RF Connectors Technical Data Sheet PE4659

Configuration
• TNC Male Reverse Polarity Connector • RG213, RG55, RG141, RG142, RG223, RG400,
• 50 Ohms RG303, PE-C195, PE-P195, LMR-195 Interface Type
• Straight Body Geometry • Clamp/Solder Attachment
Features
• Gold Plated Brass Contact • Reverse Polarity
• 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4659 RP TNC male connector with clamp/solder attachment for RG213, RG55, RG141, RG142, RG223,
RG400, RG303, PE-C195, PE-P195 and LMR-195 is part of our full line of RF components available for same-day shipping.
The male reverse polarity configuration uses a male connector body with a female inner contact receptacle.
Our reverse polarity TNC male connector PE4659 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.675 in [42.55 mm]
Width/Dia. 0.75 in [19.05 mm]
.
Weight 0.11 lbs [49.9 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum

Insulation PTFE
Body Brass Nickel
100 µin minimum

Coupling Nut Brass Nickel
100 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: RP TNC Male Connector Clamp/Solder Attachment for RG213, RG55, RG141, RG142,
RG223, RG400, RG303, PE-C195, PE-P195, LMR-195 PE4659

PE4659 REV 1.1 1
