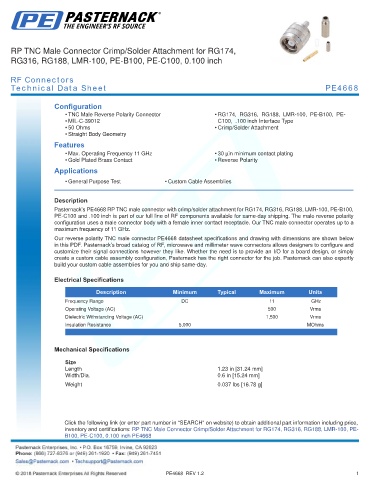

RP TNC Male Connector Crimp/Solder Attachment for RG174,
RG316, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch

RF Connectors
Technical Data Sheet PE4668

Configuration
• TNC Male Reverse Polarity Connector • RG174, RG316, RG188, LMR-100, PE-B100, PE-
• MIL-C-39012 C100, .100 inch Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 11 GHz • 30 µin minimum contact plating
• Gold Plated Brass Contact • Reverse Polarity
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4668 RP TNC male connector with crimp/solder attachment for RG174, RG316, RG188, LMR-100, PE-B100,
PE-C100 and .100 inch is part of our full line of RF components available for same-day shipping. The male reverse polarity
configuration uses a male connector body with a female inner contact receptacle. Our TNC male connector operates up to a
maximum frequency of 11 GHz.
Our reverse polarity TNC male connector PE4668 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Insulation Resistance 5,000 MOhms
.

Mechanical Specifications

Size
Length 1.23 in [31.24 mm]
Width/Dia. 0.6 in [15.24 mm]
.
Weight 0.037 lbs [16.78 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Male Connector Crimp/Solder Attachment for RG174, RG316, RG188, LMR-100, PE-
B100, PE-C100, 0.100 inch PE4668

PE4668 REV 1.2 1
