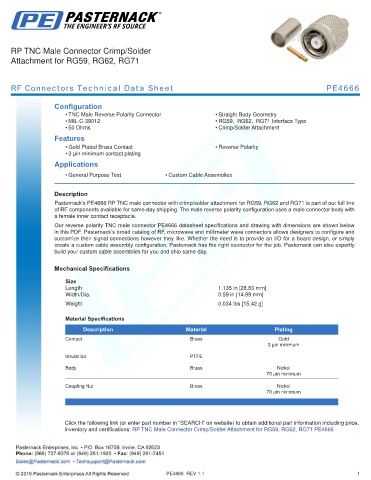

RP TNC Male Connector Crimp/Solder
Attachment for RG59, RG62, RG71

RF Connectors Technical Data Sheet PE4666

Configuration
• TNC Male Reverse Polarity Connector • Straight Body Geometry
• MIL-C-39012 • RG59, RG62, RG71 Interface Type
• 50 Ohms • Crimp/Solder Attachment
Features
• Gold Plated Brass Contact • Reverse Polarity
• 3 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4666 RP TNC male connector with crimp/solder attachment for RG59, RG62 and RG71 is part of our full line
of RF components available for same-day shipping. The male reverse polarity configuration uses a male connector body with
a female inner contact receptacle.
Our reverse polarity TNC male connector PE4666 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.135 in [28.83 mm]
Width/Dia. 0.59 in [14.99 mm]
.
Weight 0.034 lbs [15.42 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
3 µin minimum

Insulation PTFE
Body Brass Nickel
70 µin minimum

Coupling Nut Brass Nickel
70 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Male Connector Crimp/Solder Attachment for RG59, RG62, RG71 PE4666

PE4666 REV 1.1 1
