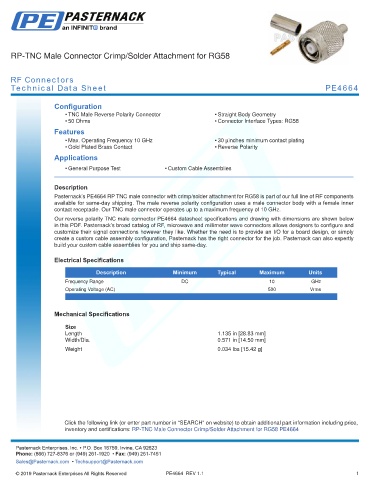

RP-TNC Male Connector Crimp/Solder Attachment for RG58

RF Connectors
Technical Data Sheet PE4664

Configuration
• TNC Male Reverse Polarity Connector • Straight Body Geometry
• 50 Ohms • Connector Interface Types: RG58
Features
• Max. Operating Frequency 10 GHz • 30 µinches minimum contact plating
• Gold Plated Brass Contact • Reverse Polarity
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4664 RP TNC male connector with crimp/solder attachment for RG58 is part of our full line of RF components
available for same-day shipping. The male reverse polarity configuration uses a male connector body with a female inner
contact receptacle. Our TNC male connector operates up to a maximum frequency of 10 GHz.
Our reverse polarity TNC male connector PE4664 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 10 GHz
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.135 in [28.83 mm]
Width/Dia. 0.571 in [14.50 mm]
.
Weight 0.034 lbs [15.42 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP-TNC Male Connector Crimp/Solder Attachment for RG58 PE4664 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4664 REV 1.1 1
