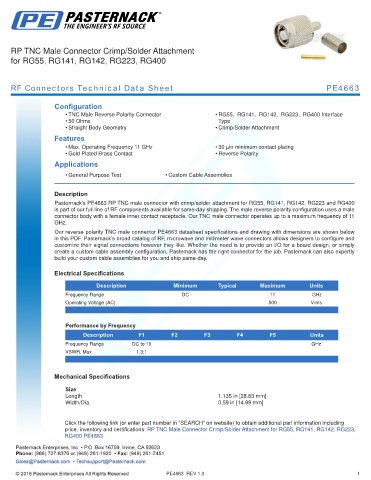

RP TNC Male Connector Crimp/Solder Attachment
for RG55, RG141, RG142, RG223, RG400

RF Connectors Technical Data Sheet PE4663

Configuration
• TNC Male Reverse Polarity Connector • RG55, RG141, RG142, RG223, RG400 Interface
• 50 Ohms Type
• Straight Body Geometry • Crimp/Solder Attachment
Features
• Max. Operating Frequency 11 GHz • 30 µin minimum contact plating
• Gold Plated Brass Contact • Reverse Polarity
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4663 RP TNC male connector with crimp/solder attachment for RG55, RG141, RG142, RG223 and RG400
is part of our full line of RF components available for same-day shipping. The male reverse polarity configuration uses a male
connector body with a female inner contact receptacle. Our TNC male connector operates up to a maximum frequency of 11
GHz.
Our reverse polarity TNC male connector PE4663 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
Operating Voltage (AC) 500 Vrms
.

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 10 GHz
VSWR, Max 1.3:1
.

Mechanical Specifications

Size
Length 1.135 in [28.83 mm]
Width/Dia. 0.59 in [14.99 mm]
.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: RP TNC Male Connector Crimp/Solder Attachment for RG55, RG141, RG142, RG223,
RG400 PE4663

PE4663 REV 1.3 1
