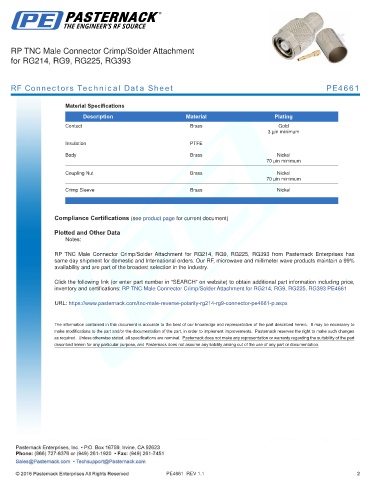

RP TNC Male Connector Crimp/Solder Attachment
for RG214, RG9, RG225, RG393

RF Connectors Technical Data Sheet PE4661

Material Specifications
Description Material Plating
Contact Brass Gold
3 µin minimum

Insulation PTFE
Body Brass Nickel
70 µin minimum

Coupling Nut Brass Nickel
70 µin minimum
Crimp Sleeve Brass Nickel

.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

RP TNC Male Connector Crimp/Solder Attachment for RG214, RG9, RG225, RG393 from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Male Connector Crimp/Solder Attachment for RG214, RG9, RG225, RG393 PE4661

URL: https://www.pasternack.com/tnc-male-reverse-polarity-rg214-rg9-connector-pe4661-p.aspx

PE4661 REV 1.1 2
