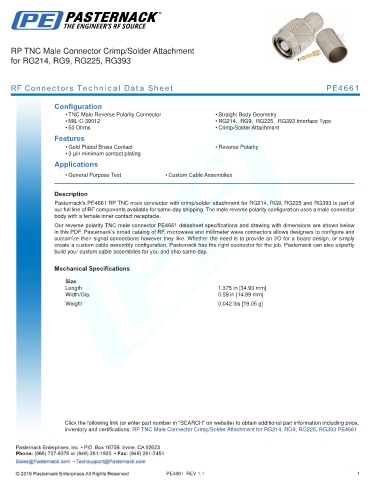

RP TNC Male Connector Crimp/Solder Attachment
for RG214, RG9, RG225, RG393

RF Connectors Technical Data Sheet PE4661

Configuration
• TNC Male Reverse Polarity Connector • Straight Body Geometry
• MIL-C-39012 • RG214, RG9, RG225, RG393 Interface Type
• 50 Ohms • Crimp/Solder Attachment
Features
• Gold Plated Brass Contact • Reverse Polarity
• 3 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4661 RP TNC male connector with crimp/solder attachment for RG214, RG9, RG225 and RG393 is part of
our full line of RF components available for same-day shipping. The male reverse polarity configuration uses a male connector
body with a female inner contact receptacle.
Our reverse polarity TNC male connector PE4661 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.375 in [34.93 mm]
Width/Dia. 0.59 in [14.99 mm]
.
Weight 0.042 lbs [19.05 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Male Connector Crimp/Solder Attachment for RG214, RG9, RG225, RG393 PE4661
