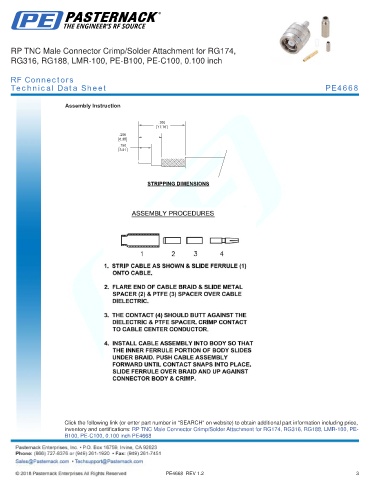

RP TNC Male Connector Crimp/Solder Attachment for RG174,
RG316, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch
RF Connectors
Technical Data Sheet PE4668
Assembly Instruction
.700
17.78
.250
6.35
.150
3.81
STRIPPING DIMENSIONS
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Male Connector Crimp/Solder Attachment for RG174, RG316, RG188, LMR-100, PE-
B100, PE-C100, 0.100 inch PE4668
PE4668 REV 1.2 3
