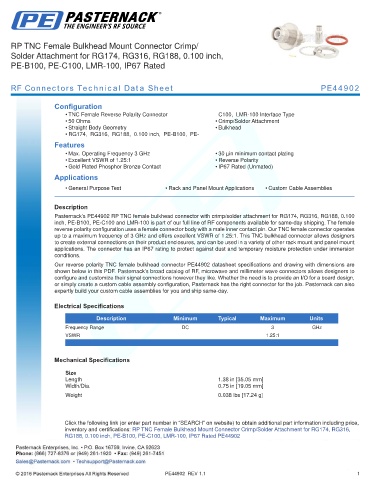

RP TNC Female Bulkhead Mount Connector Crimp/
Solder Attachment for RG174, RG316, RG188, 0.100 inch,
PE-B100, PE-C100, LMR-100, IP67 Rated

RF Connectors Technical Data Sheet PE44902

Configuration
• TNC Female Reverse Polarity Connector C100, LMR-100 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry • Bulkhead
• RG174, RG316, RG188, 0.100 inch, PE-B100, PE-
Features
• Max. Operating Frequency 3 GHz • 30 µin minimum contact plating
• Excellent VSWR of 1.25:1 • Reverse Polarity
• Gold Plated Phosphor Bronze Contact • IP67 Rated (Unmated)
Applications
• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE44902 RP TNC female bulkhead connector with crimp/solder attachment for RG174, RG316, RG188, 0.100
inch, PE-B100, PE-C100 and LMR-100 is part of our full line of RF components available for same-day shipping. The female
reverse polarity configuration uses a female connector body with a male inner contact pin. Our TNC female connector operates
up to a maximum frequency of 3 GHz and offers excellent VSWR of 1.25:1. This TNC bulkhead connector allows designers
to create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications. The connector has an IP67 rating to protect against dust and temporary moisture protection under immersion
conditions.
Our reverse polarity TNC female bulkhead connector PE44902 datasheet specifications and drawing with dimensions are
shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to
configure and customize their signal connections however they like. Whether the need is to provide an I/O for a board design,
or simply create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also
expertly build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.25:1
.

Mechanical Specifications

Size
Length 1.38 in [35.05 mm]
Width/Dia. 0.75 in [19.05 mm]
.
Weight 0.038 lbs [17.24 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Female Bulkhead Mount Connector Crimp/Solder Attachment for RG174, RG316,
RG188, 0.100 inch, PE-B100, PE-C100, LMR-100, IP67 Rated PE44902

PE44902 REV 1.1 1
