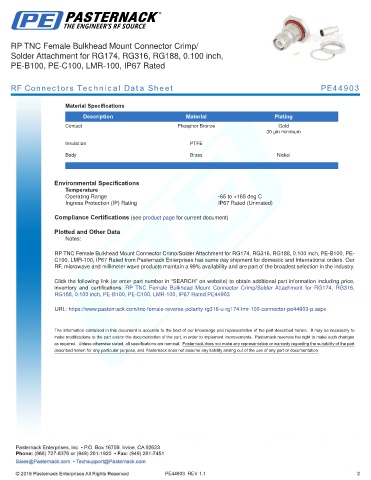

RP TNC Female Bulkhead Mount Connector Crimp/
Solder Attachment for RG174, RG316, RG188, 0.100 inch,
PE-B100, PE-C100, LMR-100, IP67 Rated

RF Connectors Technical Data Sheet PE44903

Material Specifications
Description Material Plating
Contact Phosphor Bronze Gold
30 µin minimum

Insulation PTFE
Body Brass Nickel

.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Ingress Protection (IP) Rating IP67 Rated (Unmated)

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

RP TNC Female Bulkhead Mount Connector Crimp/Solder Attachment for RG174, RG316, RG188, 0.100 inch, PE-B100, PE-
C100, LMR-100, IP67 Rated from Pasternack Enterprises has same day shipment for domestic and International orders. Our
RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Female Bulkhead Mount Connector Crimp/Solder Attachment for RG174, RG316,
RG188, 0.100 inch, PE-B100, PE-C100, LMR-100, IP67 Rated PE44903

URL: https://www.pasternack.com/tnc-female-reverse-polarity-rg316-u-rg174-lmr-100-connector-pe44903-p.aspx

PE44903 REV 1.1 2
