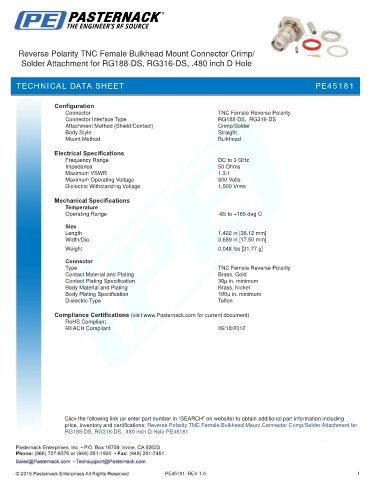

Reverse Polarity TNC Female Bulkhead Mount Connector Crimp/
Solder Attachment for RG188-DS, RG316-DS, .480 inch D Hole

TECHNICAL DATA SHEET PE45181

Configuration
Connector TNC Female Reverse Polarity
Connector Interface Type RG188-DS, RG316-DS
Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Frequency Range DC to 3 GHz
Impedance 50 Ohms
Maximum VSWR 1.3:1
Maximum Operating Voltage 500 Volts
Dielectric Withstanding Voltage 1,500 Vrms
Mechanical Specifications
Temperature
Operating Range -65 to +165 deg C

Size
Length 1.422 in [36.12 mm]
Width/Dia. 0.689 in [17.50 mm]
.
Weight 0.048 lbs [21.77 g]
Connector
Type TNC Female Reverse Polarity
Contact Material and Plating Brass, Gold
Contact Plating Specification 30µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 06/18/2012

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: Reverse Polarity TNC Female Bulkhead Mount Connector Crimp/Solder Attachment for
RG188-DS, RG316-DS, .480 inch D Hole PE45181

PE45181 REV 1.0 1
