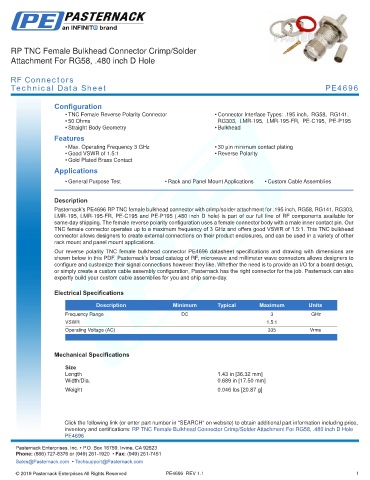

RP TNC Female Bulkhead Connector Crimp/Solder
Attachment For RG58, .480 inch D Hole

RF Connectors
Technical Data Sheet PE4696

Configuration
• TNC Female Reverse Polarity Connector • Connector Interface Types: .195 inch, RG58, RG141,
• 50 Ohms RG303, LMR-195, LMR-195-FR, PE-C195, PE-P195
• Straight Body Geometry • Bulkhead
Features
• Max. Operating Frequency 3 GHz • 30 µin minimum contact plating
• Good VSWR of 1.5:1 • Reverse Polarity
• Gold Plated Brass Contact
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE4696 RP TNC female bulkhead connector with crimp/solder attachment for .195 inch, RG58, RG141, RG303,
LMR-195, LMR-195-FR, PE-C195 and PE-P195 (.480 inch D hole) is part of our full line of RF components available for
same-day shipping. The female reverse polarity configuration uses a female connector body with a male inner contact pin. Our
TNC female connector operates up to a maximum frequency of 3 GHz and offers good VSWR of 1.5:1. This TNC bulkhead
connector allows designers to create external connections on their product enclosures, and can be used in a variety of other
rack mount and panel mount applications.
Our reverse polarity TNC female bulkhead connector PE4696 datasheet specifications and drawing with dimensions are
shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to
configure and customize their signal connections however they like. Whether the need is to provide an I/O for a board design,
or simply create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also
expertly build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.5:1
Operating Voltage (AC) 335 Vrms
.

Mechanical Specifications

Size
Length 1.43 in [36.32 mm]
Width/Dia. 0.689 in [17.50 mm]
.
Weight 0.046 lbs [20.87 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Female Bulkhead Connector Crimp/Solder Attachment For RG58, .480 inch D Hole -
PE4696 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4696 REV 1.1 1
