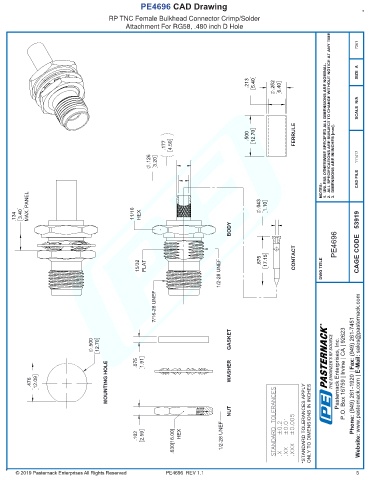

PE4696 CAD Drawing
RP TNC Female Bulkhead Connector Crimp/Solder
Attachment For RG58, .480 inch D Hole
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
7361

SIZE A

.213 5.40 .252

6.40
SCALE N/A

.500 12.70 FERRULE 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

.177 4.50

.126 3.20 3. DIMENSIONS ARE IN INCHES [mm]. 111417

NOTES: CAD FILE
MAX. PANEL .043 1.10

.134 3.40 11/16 HEX
BODY

CONTACT PE4696 CAGE CODE 53919
1/2-28 UNEF
15/32 FLAT .675 17.15 DWG TITLE

7/16-28 UNEF

R
P.O. Box 16759 | Irvine | CA | 92623
Pasternack Enterprises, Inc.
.500 12.70 GASKET
THE ENGINEER'S RF SOURCE

.075 1.91 WASHER Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
.476 12.09 MOUNTING HOLE

NUT
.XXX ±0.005
.XX ±0.01
.X ±0.2
1/2-28 UNEF
STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -
HEX
.102
2.59
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
.630[16.00]

PE4696 REV 1.1 5
