RP TNC Female Bulkhead Connector Crimp/Solder
Attachment For RG316, RG174, RG188, .480 inch D Hole

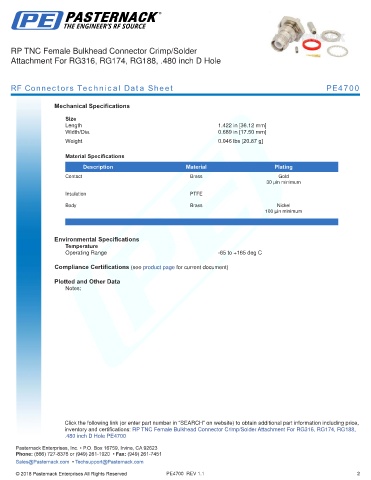

RF Connectors Technical Data Sheet PE4700

Mechanical Specifications

Size
Length 1.422 in [36.12 mm]
Width/Dia. 0.689 in [17.50 mm]
.
Weight 0.046 lbs [20.87 g]
.
Material Specifications

Description Material Plating
Contact Brass Gold
30 µin minimum
Insulation PTFE

Body Brass Nickel
100 µin minimum
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP TNC Female Bulkhead Connector Crimp/Solder Attachment For RG316, RG174, RG188,
-
.480 inch D Hole PE4700 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4700 REV 1.1 2
