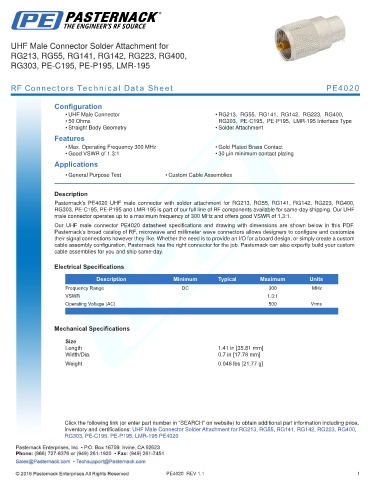

UHF Male Connector Solder Attachment for
RG213, RG55, RG141, RG142, RG223, RG400,
RG303, PE-C195, PE-P195, LMR-195

RF Connectors Technical Data Sheet PE4020

Configuration
• UHF Male Connector • RG213, RG55, RG141, RG142, RG223, RG400,
• 50 Ohms RG303, PE-C195, PE-P195, LMR-195 Interface Type
• Straight Body Geometry • Solder Attachment
Features
• Max. Operating Frequency 300 MHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4020 UHF male connector with solder attachment for RG213, RG55, RG141, RG142, RG223, RG400,
RG303, PE-C195, PE-P195 and LMR-195 is part of our full line of RF components available for same-day shipping. Our UHF
male connector operates up to a maximum frequency of 300 MHz and offers good VSWR of 1.3:1.
Our UHF male connector PE4020 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 300 MHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.41 in [35.81 mm]
Width/Dia. 0.7 in [17.78 mm]
.
Weight 0.048 lbs [21.77 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UHF Male Connector Solder Attachment for RG213, RG55, RG141, RG142, RG223, RG400,
RG303, PE-C195, PE-P195, LMR-195 PE4020

PE4020 REV 1.1 1
