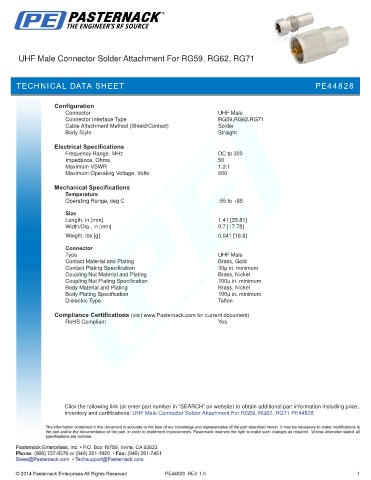

UHF Male Connector Solder Attachment For RG59, RG62, RG71

TECHNICAL DATA SHEET PE44828

Configuration
Connector UHF Male
Connector Interface Type RG59,RG62,RG71
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight

Electrical Specifications
Frequency Range, MHz DC to 300
Impedance, Ohms 50
Maximum VSWR 1.3:1
Maximum Operating Voltage, Volts 500

Mechanical Specifications
Temperature
Operating Range, deg C -55 to +85
Size
Length, in [mm] 1.41 [35.81]
Width/Dia., in [mm] 0.7 [17.78]
.
Weight, lbs [g] 0.041 [18.6]
Connector
Type UHF Male
Contact Material and Plating Brass, Gold
Contact Plating Specification 30µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UHF Male Connector Solder Attachment For RG59, RG62, RG71 PE44828

PE44828 REV 1.0 1
