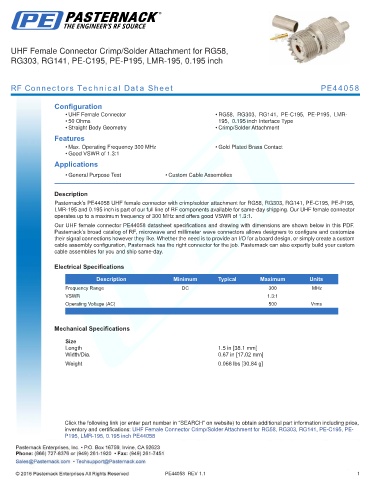

UHF Female Connector Crimp/Solder Attachment for RG58,
RG303, RG141, PE-C195, PE-P195, LMR-195, 0.195 inch

RF Connectors Technical Data Sheet PE44058

Configuration
• UHF Female Connector • RG58, RG303, RG141, PE-C195, PE-P195, LMR-
• 50 Ohms 195, 0.195 inch Interface Type
• Straight Body Geometry • Crimp/Solder Attachment
Features
• Max. Operating Frequency 300 MHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44058 UHF female connector with crimp/solder attachment for RG58, RG303, RG141, PE-C195, PE-P195,
LMR-195 and 0.195 inch is part of our full line of RF components available for same-day shipping. Our UHF female connector
operates up to a maximum frequency of 300 MHz and offers good VSWR of 1.3:1.
Our UHF female connector PE44058 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 300 MHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.5 in [38.1 mm]
Width/Dia. 0.67 in [17.02 mm]
.
Weight 0.068 lbs [30.84 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UHF Female Connector Crimp/Solder Attachment for RG58, RG303, RG141, PE-C195, PE-
P195, LMR-195, 0.195 inch PE44058

PE44058 REV 1.1 1
