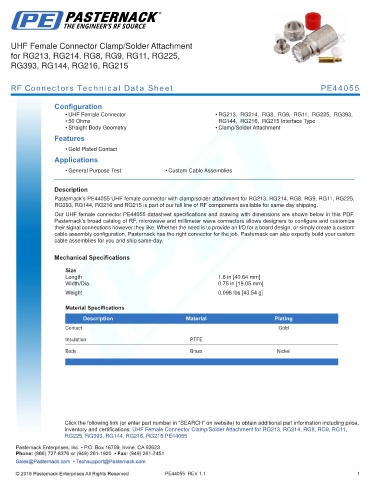

UHF Female Connector Clamp/Solder Attachment
for RG213, RG214, RG8, RG9, RG11, RG225,
RG393, RG144, RG216, RG215

RF Connectors Technical Data Sheet PE44055

Configuration
• UHF Female Connector • RG213, RG214, RG8, RG9, RG11, RG225, RG393,
• 50 Ohms RG144, RG216, RG215 Interface Type
• Straight Body Geometry • Clamp/Solder Attachment
Features
• Gold Plated Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44055 UHF female connector with clamp/solder attachment for RG213, RG214, RG8, RG9, RG11, RG225,
RG393, RG144, RG216 and RG215 is part of our full line of RF components available for same-day shipping.
Our UHF female connector PE44055 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.6 in [40.64 mm]
Width/Dia. 0.75 in [19.05 mm]
.
Weight 0.096 lbs [43.54 g]
.
Material Specifications
Description Material Plating
Contact Gold
Insulation PTFE

Body Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UHF Female Connector Clamp/Solder Attachment for RG213, RG214, RG8, RG9, RG11,
RG225, RG393, RG144, RG216, RG215 PE44055

PE44055 REV 1.1 1
