75 Ohm MCX Plug Connector Solder Attachment Thru
Hole PCB, .200 inch x .055 inch Hole Spacing

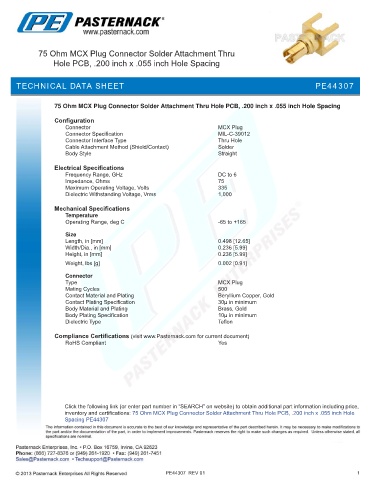

TECHNICAL DATA SHEET PE44307

75 Ohm MCX Plug Connector Solder Attachment Thru Hole PCB, .200 inch x .055 inch Hole Spacing

Configuration
Connector MCX Plug
Connector Specification MIL-C-39012
Connector Interface Type Thru Hole
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight

Electrical Specifications
Frequency Range, GHz DC to 6
Impedance, Ohms 75
Maximum Operating Voltage, Volts 335
Dielectric Withstanding Voltage, Vrms 1,000

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165

Size
Length, in [mm] 0.498 [12.65]
Width/Dia., in [mm] 0.236 [5.99]
Height, in [mm] 0.236 [5.99]
.
Weight, lbs [g] 0.002 [0.91]
Connector
Type MCX Plug
Mating Cycles 500
Contact Material and Plating Beryllium Copper, Gold
Contact Plating Specification 30µ in minimum
Body Material and Plating Brass, Gold
Body Plating Specification 10µ in minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm MCX Plug Connector Solder Attachment Thru Hole PCB, .200 inch x .055 inch Hole
Spacing PE44307
