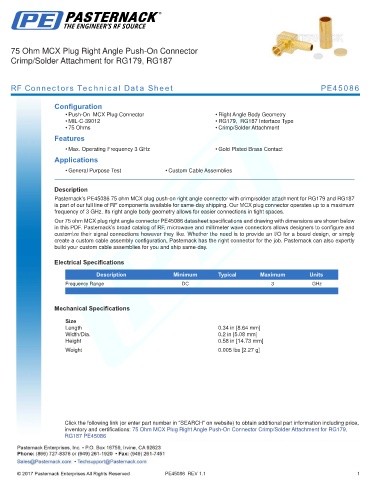

75 Ohm MCX Plug Right Angle Push-On Connector
Crimp/Solder Attachment for RG179, RG187

RF Connectors Technical Data Sheet PE45086

Configuration
• Push-On MCX Plug Connector • Right Angle Body Geometry
• MIL-C-39012 • RG179, RG187 Interface Type
• 75 Ohms • Crimp/Solder Attachment
Features
• Max. Operating Frequency 3 GHz • Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE45086 75 ohm MCX plug push-on right angle connector with crimp/solder attachment for RG179 and RG187
is part of our full line of RF components available for same-day shipping. Our MCX plug connector operates up to a maximum
frequency of 3 GHz. Its right angle body geometry allows for easier connections in tight spaces.
Our 75 ohm MCX plug right angle connector PE45086 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
.

Mechanical Specifications

Size
Length 0.34 in [8.64 mm]
Width/Dia. 0.2 in [5.08 mm]
Height 0.58 in [14.73 mm]
.
Weight 0.005 lbs [2.27 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm MCX Plug Right Angle Push-On Connector Crimp/Solder Attachment for RG179,
RG187 PE45086

PE45086 REV 1.1 1
