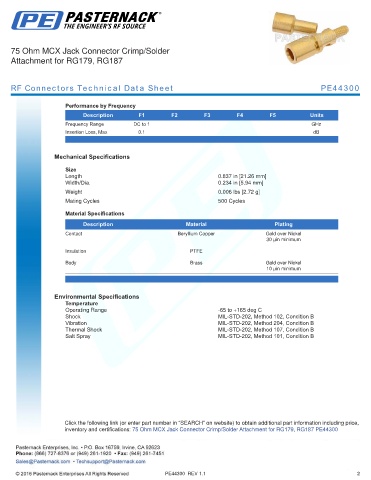

75 Ohm MCX Jack Connector Crimp/Solder
Attachment for RG179, RG187
RF Connectors Technical Data Sheet PE44300
Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 1 GHz
Insertion Loss, Max 0.1 dB
.
Mechanical Specifications
Size
Length 0.837 in [21.26 mm]
Width/Dia. 0.234 in [5.94 mm]
.
Weight 0.006 lbs [2.72 g]
.
Mating Cycles 500 Cycles
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold over Nickel
30 µin minimum
Insulation PTFE
Body Brass Gold over Nickel
10 µin minimum
.
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Shock MIL-STD-202, Method 102, Condition B
Vibration MIL-STD-202, Method 204, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Salt Spray MIL-STD-202, Method 101, Condition B
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm MCX Jack Connector Crimp/Solder Attachment for RG179, RG187 PE44300
PE44300 REV 1.1 2
