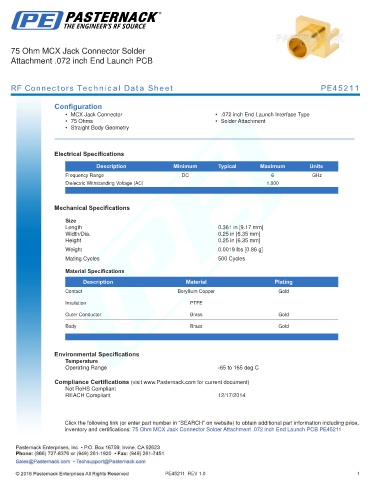

75 Ohm MCX Jack Connector Solder
Attachment .072 inch End Launch PCB
RF Connectors Technical Data Sheet PE45211
Configuration
• MCX Jack Connector • .072 inch End Launch Interface Type
• 75 Ohms • Solder Attachment
• Straight Body Geometry
.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
Dielectric Withstanding Voltage (AC) 1,000
.
Mechanical Specifications
Size
Length 0.361 in [9.17 mm]
Width/Dia. 0.25 in [6.35 mm]
Height 0.25 in [6.35 mm]
.
Weight 0.0019 lbs [0.86 g]
.
Mating Cycles 500 Cycles
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
Insulation PTFE
Outer Conductor Brass Gold
Body Brass Gold
.
Environmental Specifications
Temperature
Operating Range -65 to 165 deg C
Compliance Certifications (visit www.Pasternack.com for current document)
Not RoHS Compliant
REACH Compliant 12/17/2014
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm MCX Jack Connector Solder Attachment .072 inch End Launch PCB PE45211
PE45211 REV 1.0 1
