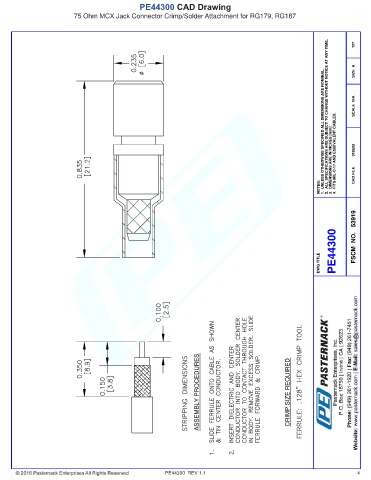

PE44300 CAD Drawing
75 Ohm MCX Jack Connector Crimp/Solder Attachment for RG179, RG187
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 010603
NOTES: CAD FILE
PE44300 FSCM NO. 53919
DWG TITLE
ASSEMBLY PROCEDURES CRIMP SIZE REQUIRED
PE44300 REV 1.1 4
