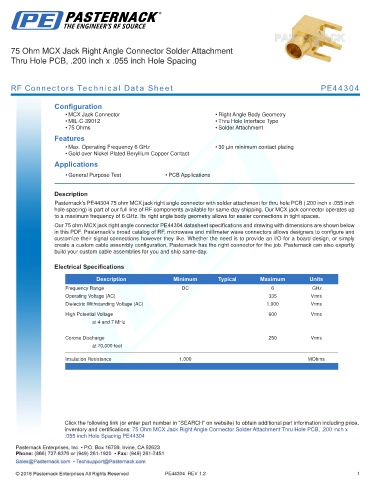

75 Ohm MCX Jack Right Angle Connector Solder Attachment
Thru Hole PCB, .200 inch x .055 inch Hole Spacing

RF Connectors Technical Data Sheet PE44304

Configuration
• MCX Jack Connector • Right Angle Body Geometry
• MIL-C-39012 • Thru Hole Interface Type
• 75 Ohms • Solder Attachment
Features
• Max. Operating Frequency 6 GHz • 30 µin minimum contact plating
• Gold over Nickel Plated Beryllium Copper Contact
Applications
• General Purpose Test • PCB Applications
.
Description
Pasternack’s PE44304 75 ohm MCX jack right angle connector with solder attachment for thru hole PCB (.200 inch x .055 inch
hole spacing) is part of our full line of RF components available for same-day shipping. Our MCX jack connector operates up
to a maximum frequency of 6 GHz. Its right angle body geometry allows for easier connections in tight spaces.
Our 75 ohm MCX jack right angle connector PE44304 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
High Potential Voltage 600 Vrms
at 4 and 7 MHz

Corona Discharge 250 Vrms
at 70,000 feet
Insulation Resistance 1,000 MOhms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm MCX Jack Right Angle Connector Solder Attachment Thru Hole PCB, .200 inch x
.055 inch Hole Spacing PE44304

PE44304 REV 1.2 1
