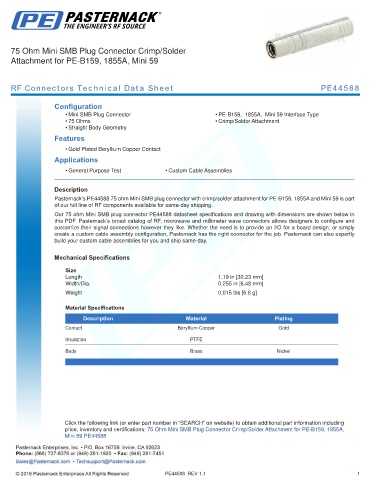

75 Ohm Mini SMB Plug Connector Crimp/Solder
Attachment for PE-B159, 1855A, Mini 59

RF Connectors Technical Data Sheet PE44588

Configuration
• Mini SMB Plug Connector • PE-B159, 1855A, Mini 59 Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Gold Plated Beryllium Copper Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44588 75 ohm Mini SMB plug connector with crimp/solder attachment for PE-B159, 1855A and Mini 59 is part
of our full line of RF components available for same-day shipping.
Our 75 ohm Mini SMB plug connector PE44588 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.19 in [30.23 mm]
Width/Dia. 0.255 in [6.48 mm]
.
Weight 0.015 lbs [6.8 g]
.
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
Insulation PTFE

Body Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: 75 Ohm Mini SMB Plug Connector Crimp/Solder Attachment for PE-B159, 1855A,
Mini 59 PE44588

PE44588 REV 1.1 1
