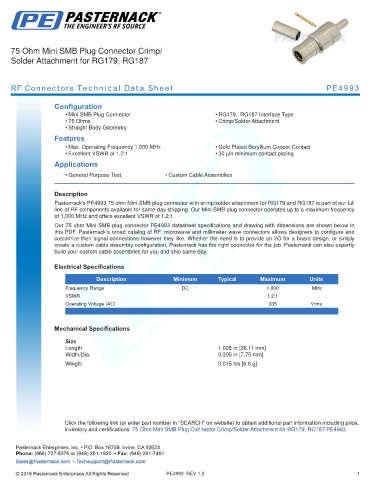

75 Ohm Mini SMB Plug Connector Crimp/
Solder Attachment for RG179, RG187

RF Connectors Technical Data Sheet PE4993

Configuration
• Mini SMB Plug Connector • RG179, RG187 Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 1,000 MHz • Gold Plated Beryllium Copper Contact
• Excellent VSWR of 1.2:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4993 75 ohm Mini SMB plug connector with crimp/solder attachment for RG179 and RG187 is part of our full
line of RF components available for same-day shipping. Our Mini SMB plug connector operates up to a maximum frequency
of 1,000 MHz and offers excellent VSWR of 1.2:1.
Our 75 ohm Mini SMB plug connector PE4993 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.2:1
Operating Voltage (AC) 335 Vrms
.

Mechanical Specifications

Size
Length 1.028 in [26.11 mm]
Width/Dia. 0.305 in [7.75 mm]
.
Weight 0.015 lbs [6.8 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm Mini SMB Plug Connector Crimp/Solder Attachment for RG179, RG187 PE4993

PE4993 REV 1.2 1
