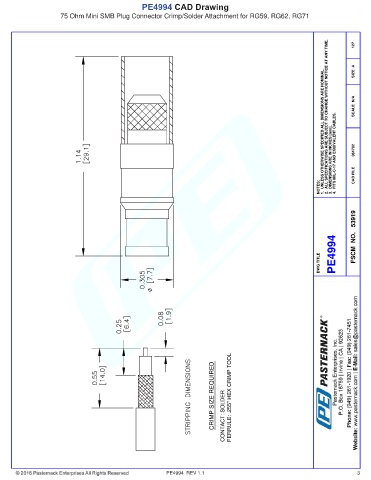

PE4994 CAD Drawing
75 Ohm Mini SMB Plug Connector Crimp/Solder Attachment for RG59, RG62, RG71
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 061702
NOTES: CAD FILE
DWG TITLE PE4994 FSCM NO. 53919
CRIMP SIZE REQUIRED CONTACT: SOLDER FERRULE: .255" HEX CRIMP TOOL
PE4994 REV 1.1 3
