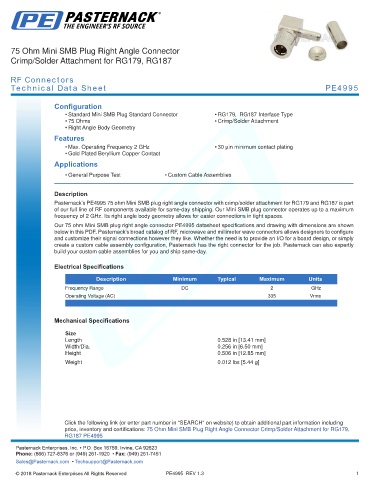

75 Ohm Mini SMB Plug Right Angle Connector
Crimp/Solder Attachment for RG179, RG187

RF Connectors
Technical Data Sheet PE4995

Configuration
• Standard Mini SMB Plug Standard Connector • RG179, RG187 Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 2 GHz • 30 µin minimum contact plating
• Gold Plated Beryllium Copper Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4995 75 ohm Mini SMB plug right angle connector with crimp/solder attachment for RG179 and RG187 is part
of our full line of RF components available for same-day shipping. Our Mini SMB plug connector operates up to a maximum
frequency of 2 GHz. Its right angle body geometry allows for easier connections in tight spaces.
Our 75 ohm Mini SMB plug right angle connector PE4995 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
Operating Voltage (AC) 335 Vrms
.

Mechanical Specifications

Size
Length 0.528 in [13.41 mm]
Width/Dia. 0.256 in [6.50 mm]
Height 0.506 in [12.85 mm]
.
Weight 0.012 lbs [5.44 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: 75 Ohm Mini SMB Plug Right Angle Connector Crimp/Solder Attachment for RG179, -
RG187 PE4995 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4995 REV 1.3 1
