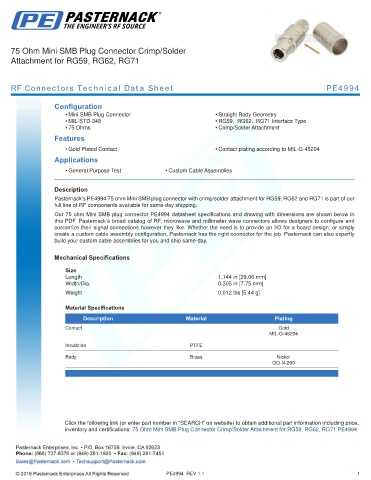

75 Ohm Mini SMB Plug Connector Crimp/Solder
Attachment for RG59, RG62, RG71

RF Connectors Technical Data Sheet PE4994

Configuration
• Mini SMB Plug Connector • Straight Body Geometry
• MIL-STD-348 • RG59, RG62, RG71 Interface Type
• 75 Ohms • Crimp/Solder Attachment
Features
• Gold Plated Contact • Contact plating according to MIL-G-45204
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4994 75 ohm Mini SMB plug connector with crimp/solder attachment for RG59, RG62 and RG71 is part of our
full line of RF components available for same-day shipping.
Our 75 ohm Mini SMB plug connector PE4994 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.144 in [29.06 mm]
Width/Dia. 0.305 in [7.75 mm]
.
Weight 0.012 lbs [5.44 g]
.
Material Specifications
Description Material Plating
Contact Gold
MIL-G-45204
Insulation PTFE

Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm Mini SMB Plug Connector Crimp/Solder Attachment for RG59, RG62, RG71 PE4994

PE4994 REV 1.1 1
