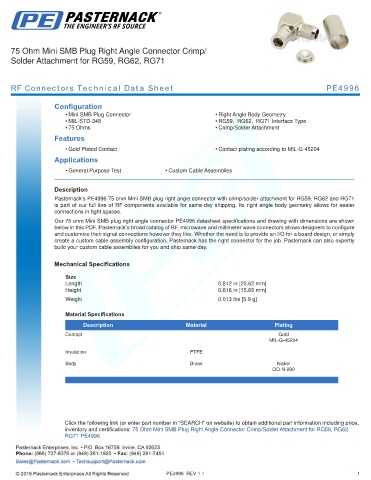

75 Ohm Mini SMB Plug Right Angle Connector Crimp/
Solder Attachment for RG59, RG62, RG71

RF Connectors Technical Data Sheet PE4996

Configuration
• Mini SMB Plug Connector • Right Angle Body Geometry
• MIL-STD-348 • RG59, RG62, RG71 Interface Type
• 75 Ohms • Crimp/Solder Attachment
Features
• Gold Plated Contact • Contact plating according to MIL-G-45204
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4996 75 ohm Mini SMB plug right angle connector with crimp/solder attachment for RG59, RG62 and RG71
is part of our full line of RF components available for same-day shipping. Its right angle body geometry allows for easier
connections in tight spaces.
Our 75 ohm Mini SMB plug right angle connector PE4996 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 0.812 in [20.62 mm]
Height 0.616 in [15.65 mm]
.
Weight 0.013 lbs [5.9 g]
.
Material Specifications
Description Material Plating
Contact Gold
MIL-G-45204
Insulation PTFE
Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm Mini SMB Plug Right Angle Connector Crimp/Solder Attachment for RG59, RG62,
RG71 PE4996

PE4996 REV 1.1 1
