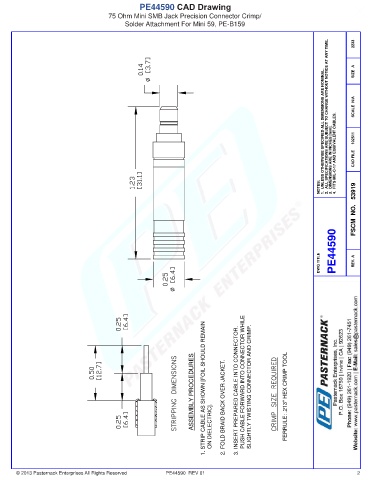

PE44590 CAD Drawing
                                     75 Ohm Mini SMB Jack Precision Connector Crimp/
                                          Solder Attachment For Mini 59, PE-B159


                                                                                                                      2233
                                                                                                             2.  ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.


                                                                                                                      SIZE  A
                                                                                                            1.  UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.




                                                                                                                      SCALE  N/A




                                                                                                              3.  DIMENSIONS ARE IN INCHES [mm]. 4.  FITS MIL-C-17 AND EQUIVALENT CABLES.  102511  CAD FILE









                                                                                                           NOTES:
                                                                                                                      FSCM  NO.   53919







                                                                                                                PE44590



                                                                                                          DWG TITLE   REV. A



















                                                                 ASSEMBLY PROCEDURES 1. STRIP CABLE AS SHOWN [FOIL SHOULD REMAIN      ON DIELECTRIC]. 2. FOLD BRAID BACK OVER JACKET. 3. INSERT PREPARED CABLE INTO CONNECTOR.     PUSH CABLE FORWARD INTO CONNECTOR WHILE     SLIGHTLY TWISTING CONNECTOR AND CRIMP.  FERRULE: .213" HEX CRIMP TOOL






















      © 2013 Pasternack Enterprises All Rights Reserved  PE44590  REV 01                                               2
