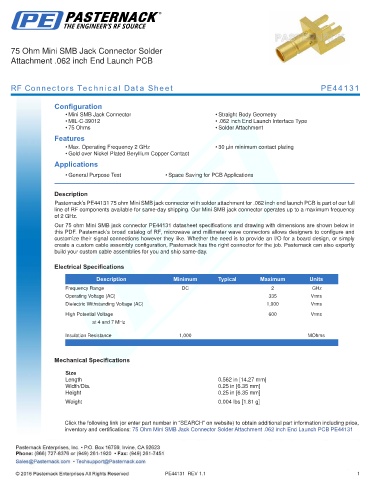

75 Ohm Mini SMB Jack Connector Solder
Attachment .062 inch End Launch PCB

RF Connectors Technical Data Sheet PE44131

Configuration
• Mini SMB Jack Connector • Straight Body Geometry
• MIL-C-39012 • .062 inch End Launch Interface Type
• 75 Ohms • Solder Attachment
Features
• Max. Operating Frequency 2 GHz • 30 µin minimum contact plating
• Gold over Nickel Plated Beryllium Copper Contact
Applications
• General Purpose Test • Space Saving for PCB Applications
.
Description
Pasternack’s PE44131 75 ohm Mini SMB jack connector with solder attachment for .062 inch end launch PCB is part of our full
line of RF components available for same-day shipping. Our Mini SMB jack connector operates up to a maximum frequency
of 2 GHz.
Our 75 ohm Mini SMB jack connector PE44131 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
High Potential Voltage 600 Vrms
at 4 and 7 MHz
Insulation Resistance 1,000 MOhms
.

Mechanical Specifications

Size
Length 0.562 in [14.27 mm]
Width/Dia. 0.25 in [6.35 mm]
Height 0.25 in [6.35 mm]
.
Weight 0.004 lbs [1.81 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm Mini SMB Jack Connector Solder Attachment .062 inch End Launch PCB PE44131
