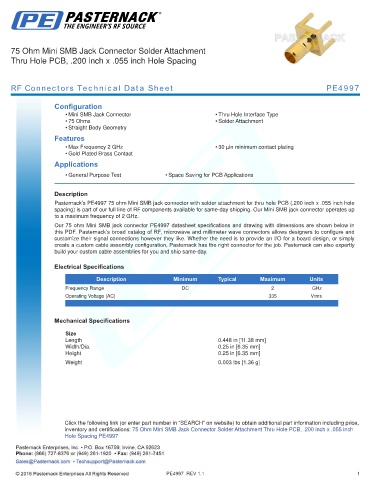

75 Ohm Mini SMB Jack Connector Solder Attachment
Thru Hole PCB, .200 inch x .055 inch Hole Spacing

RF Connectors Technical Data Sheet PE4997

Configuration
• Mini SMB Jack Connector • Thru Hole Interface Type
• 75 Ohms • Solder Attachment
• Straight Body Geometry
Features
• Max Frequency 2 GHz • 30 µin minimum contact plating
• Gold Plated Brass Contact
Applications
• General Purpose Test • Space Saving for PCB Applications
.
Description
Pasternack’s PE4997 75 ohm Mini SMB jack connector with solder attachment for thru hole PCB (.200 inch x .055 inch hole
spacing) is part of our full line of RF components available for same-day shipping. Our Mini SMB jack connector operates up
to a maximum frequency of 2 GHz.
Our 75 ohm Mini SMB jack connector PE4997 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
Operating Voltage (AC) 335 Vrms
.

Mechanical Specifications

Size
Length 0.448 in [11.38 mm]
Width/Dia. 0.25 in [6.35 mm]
Height 0.25 in [6.35 mm]
.
Weight 0.003 lbs [1.36 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm Mini SMB Jack Connector Solder Attachment Thru Hole PCB, .200 inch x .055 inch
Hole Spacing PE4997
