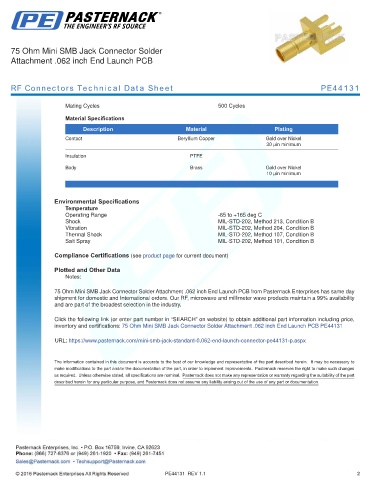

75 Ohm Mini SMB Jack Connector Solder
Attachment .062 inch End Launch PCB

RF Connectors Technical Data Sheet PE44131

Mating Cycles 500 Cycles

Material Specifications
Description Material Plating
Contact Beryllium Copper Gold over Nickel
30 µin minimum

Insulation PTFE
Body Brass Gold over Nickel
10 µin minimum
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Shock MIL-STD-202, Method 213, Condition B
Vibration MIL-STD-202, Method 204, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Salt Spray MIL-STD-202, Method 101, Condition B

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

75 Ohm Mini SMB Jack Connector Solder Attachment .062 inch End Launch PCB from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm Mini SMB Jack Connector Solder Attachment .062 inch End Launch PCB PE44131

URL: https://www.pasternack.com/mini-smb-jack-standard-0.062-end-launch-connector-pe44131-p.aspx

PE44131 REV 1.1 2
