75 Ohm Mini SMB Jack Precision Connector Crimp/
Solder Attachment For Mini 59, PE-B159

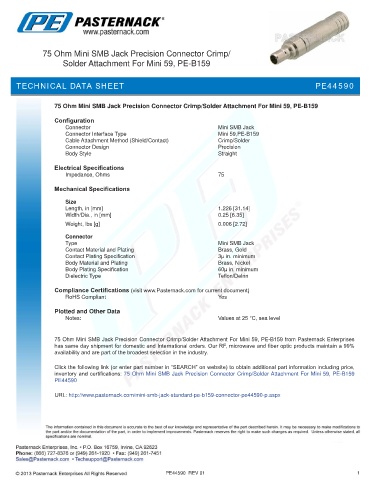

TECHNICAL DATA SHEET PE44590

75 Ohm Mini SMB Jack Precision Connector Crimp/Solder Attachment For Mini 59, PE-B159

Configuration
Connector Mini SMB Jack
Connector Interface Type Mini 59,PE-B159
Cable Attachment Method (Shield/Contact) Crimp/Solder
Connector Design Precision
Body Style Straight

Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 1.226 [31.14]
Width/Dia., in [mm] 0.25 [6.35]
.
Weight, lbs [g] 0.006 [2.72]
Connector
Type Mini SMB Jack
Contact Material and Plating Brass, Gold
Contact Plating Specification 3µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 60µ in. minimum
Dielectric Type Teflon/Delrin

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm Mini SMB Jack Precision Connector Crimp/Solder Attachment For Mini 59, PE-B159 from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm Mini SMB Jack Precision Connector Crimp/Solder Attachment For Mini 59, PE-B159
PE44590

URL: http://www.pasternack.com/mini-smb-jack-standard-pe-b159-connector-pe44590-p.aspx

PE44590 REV 01 1
