75 Ohm Mini SMB Jack Connector Solder
Attachment 0.042 inch End Launch PCB

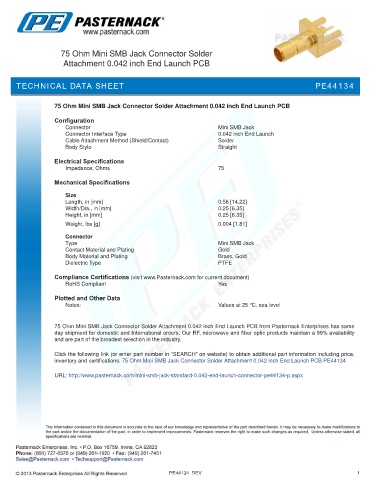

TECHNICAL DATA SHEET PE44134

75 Ohm Mini SMB Jack Connector Solder Attachment 0.042 inch End Launch PCB

Configuration
Connector Mini SMB Jack
Connector Interface Type 0.042 inch End Launch
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 0.56 [14.22]
Width/Dia., in [mm] 0.25 [6.35]
Height, in [mm] 0.25 [6.35]
.
Weight, lbs [g] 0.004 [1.81]
Connector
Type Mini SMB Jack
Contact Material and Plating Gold
Body Material and Plating Brass, Gold
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm Mini SMB Jack Connector Solder Attachment 0.042 inch End Launch PCB from Pasternack Enterprises has same
day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm Mini SMB Jack Connector Solder Attachment 0.042 inch End Launch PCB PE44134

URL: http://www.pasternack.com/mini-smb-jack-standard-0.042-end-launch-connector-pe44134-p.aspx

PE44134 REV 1
