75 Ohm Mini SMB Jack Bulkhead Connector Solder
Attachment Thru Hole PCB, .177 inch D Hole

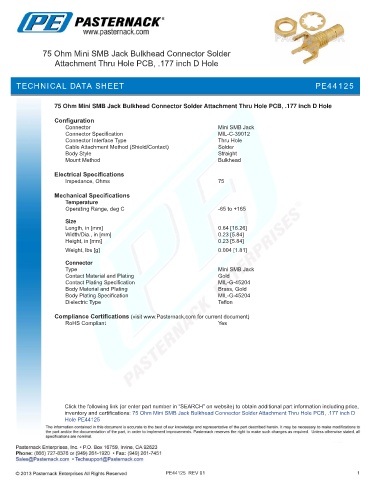

TECHNICAL DATA SHEET PE44125

75 Ohm Mini SMB Jack Bulkhead Connector Solder Attachment Thru Hole PCB, .177 inch D Hole

Configuration
Connector Mini SMB Jack
Connector Specification MIL-C-39012
Connector Interface Type Thru Hole
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165

Size
Length, in [mm] 0.64 [16.26]
Width/Dia., in [mm] 0.23 [5.84]
Height, in [mm] 0.23 [5.84]
.
Weight, lbs [g] 0.004 [1.81]
Connector
Type Mini SMB Jack
Contact Material and Plating Gold
Contact Plating Specification MIL-G-45204
Body Material and Plating Brass, Gold
Body Plating Specification MIL-G-45204
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm Mini SMB Jack Bulkhead Connector Solder Attachment Thru Hole PCB, .177 inch D
Hole PE44125

PE44125 REV 01 1
