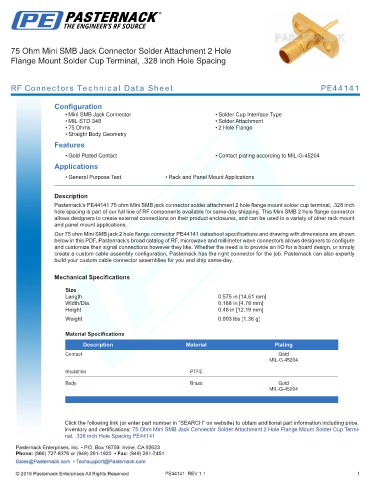

75 Ohm Mini SMB Jack Connector Solder Attachment 2 Hole
Flange Mount Solder Cup Terminal, .328 inch Hole Spacing

RF Connectors Technical Data Sheet PE44141

Configuration
• Mini SMB Jack Connector • Solder Cup Interface Type
• MIL-STD-348 • Solder Attachment
• 75 Ohms • 2 Hole Flange
• Straight Body Geometry
Features
• Gold Plated Contact • Contact plating according to MIL-G-45204
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE44141 75 ohm Mini SMB jack connector solder attachment 2 hole flange mount solder cup terminal, .328 inch
hole spacing is part of our full line of RF components available for same-day shipping. This Mini SMB 2 hole flange connector
allows designers to create external connections on their product enclosures, and can be used in a variety of other rack mount
and panel mount applications.
Our 75 ohm Mini SMB jack 2 hole flange connector PE44141 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 0.575 in [14.61 mm]
Width/Dia. 0.188 in [4.78 mm]
Height 0.48 in [12.19 mm]
.
Weight 0.003 lbs [1.36 g]
.
Material Specifications
Description Material Plating
Contact Gold
MIL-G-45204
Insulation PTFE
Body Brass Gold
MIL-G-45204
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm Mini SMB Jack Connector Solder Attachment 2 Hole Flange Mount Solder Cup Termi-
nal, .328 inch Hole Spacing PE44141

PE44141 REV 1.1 1
