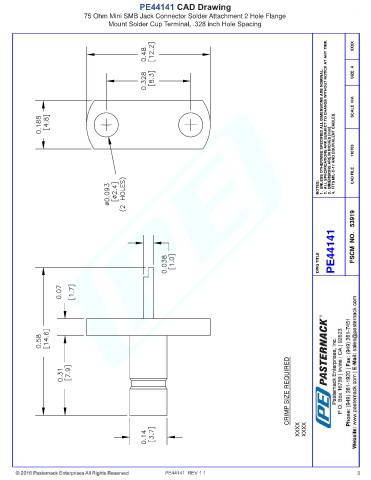

PE44141 CAD Drawing
75 Ohm Mini SMB Jack Connector Solder Attachment 2 Hole Flange
Mount Solder Cup Terminal, .328 inch Hole Spacing
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 110703
NOTES: CAD FILE
PE44141 FSCM NO. 53919
DWG TITLE
CRIMP SIZE REQUIRED
XXXX XXXX
PE44141 REV 1.1 3
