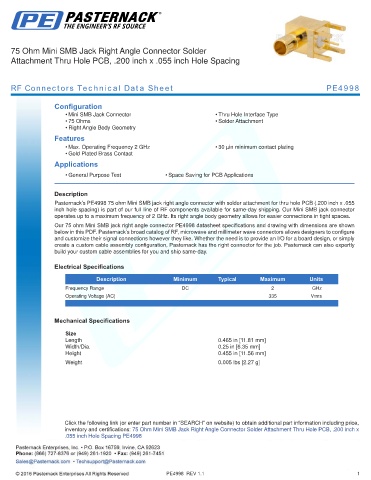

75 Ohm Mini SMB Jack Right Angle Connector Solder
Attachment Thru Hole PCB, .200 inch x .055 inch Hole Spacing

RF Connectors Technical Data Sheet PE4998

Configuration
• Mini SMB Jack Connector • Thru Hole Interface Type
• 75 Ohms • Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 2 GHz • 30 µin minimum contact plating
• Gold Plated Brass Contact
Applications
• General Purpose Test • Space Saving for PCB Applications
.
Description
Pasternack’s PE4998 75 ohm Mini SMB jack right angle connector with solder attachment for thru hole PCB (.200 inch x .055
inch hole spacing) is part of our full line of RF components available for same-day shipping. Our Mini SMB jack connector
operates up to a maximum frequency of 2 GHz. Its right angle body geometry allows for easier connections in tight spaces.
Our 75 ohm Mini SMB jack right angle connector PE4998 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
Operating Voltage (AC) 335 Vrms
.

Mechanical Specifications

Size
Length 0.465 in [11.81 mm]
Width/Dia. 0.25 in [6.35 mm]
Height 0.455 in [11.56 mm]
.
Weight 0.005 lbs [2.27 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm Mini SMB Jack Right Angle Connector Solder Attachment Thru Hole PCB, .200 inch x
.055 inch Hole Spacing PE4998

PE4998 REV 1.1 1
