75 Ohm Mini SMB Jack Right Angle Bulkhead Connector
Solder Attachment Thru Hole PCB, .177 inch D Hole

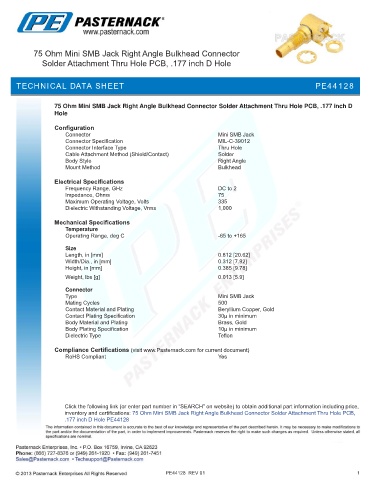

TECHNICAL DATA SHEET PE44128

75 Ohm Mini SMB Jack Right Angle Bulkhead Connector Solder Attachment Thru Hole PCB, .177 inch D
Hole

Configuration
Connector Mini SMB Jack
Connector Specification MIL-C-39012
Connector Interface Type Thru Hole
Cable Attachment Method (Shield/Contact) Solder
Body Style Right Angle
Mount Method Bulkhead

Electrical Specifications
Frequency Range, GHz DC to 2
Impedance, Ohms 75
Maximum Operating Voltage, Volts 335
Dielectric Withstanding Voltage, Vrms 1,000

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165
Size
Length, in [mm] 0.812 [20.62]
Width/Dia., in [mm] 0.312 [7.92]
Height, in [mm] 0.385 [9.78]
.
Weight, lbs [g] 0.013 [5.9]
Connector
Type Mini SMB Jack
Mating Cycles 500
Contact Material and Plating Beryllium Copper, Gold
Contact Plating Specification 30µ in minimum
Body Material and Plating Brass, Gold
Body Plating Specification 10µ in minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm Mini SMB Jack Right Angle Bulkhead Connector Solder Attachment Thru Hole PCB,
.177 inch D Hole PE44128

PE44128 REV 01 1
