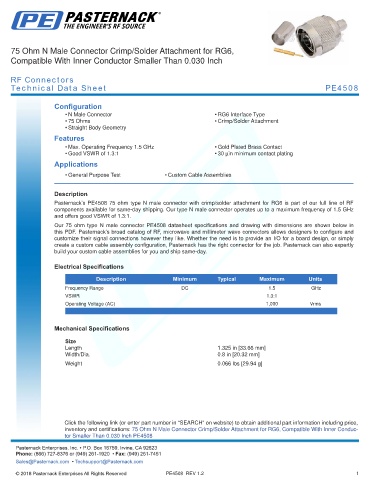

75 Ohm N Male Connector Crimp/Solder Attachment for RG6,
Compatible With Inner Conductor Smaller Than 0.030 Inch

RF Connectors
Technical Data Sheet PE4508

Configuration
• N Male Connector • RG6 Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 1.5 GHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4508 75 ohm type N male connector with crimp/solder attachment for RG6 is part of our full line of RF
components available for same-day shipping. Our type N male connector operates up to a maximum frequency of 1.5 GHz
and offers good VSWR of 1.3:1.
Our 75 ohm type N male connector PE4508 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1.5 GHz
VSWR 1.3:1
Operating Voltage (AC) 1,000 Vrms
.

Mechanical Specifications

Size
Length 1.325 in [33.66 mm]
Width/Dia. 0.8 in [20.32 mm]
.
Weight 0.066 lbs [29.94 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male Connector Crimp/Solder Attachment for RG6, Compatible With Inner Conduc-
-
tor Smaller Than 0.030 Inch PE4508 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4508 REV 1.2 1
