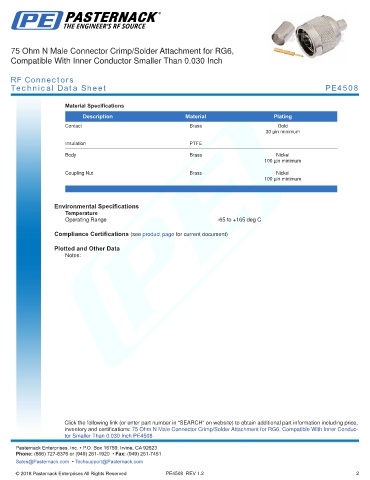

75 Ohm N Male Connector Crimp/Solder Attachment for RG6,
Compatible With Inner Conductor Smaller Than 0.030 Inch

RF Connectors
Technical Data Sheet PE4508

Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum

Insulation PTFE
Body Brass Nickel
100 µin minimum

Coupling Nut Brass Nickel
100 µin minimum
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male Connector Crimp/Solder Attachment for RG6, Compatible With Inner Conduc-
-
tor Smaller Than 0.030 Inch PE4508 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4508 REV 1.2 2
