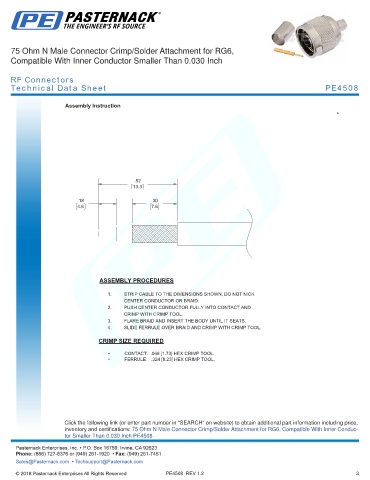

75 Ohm N Male Connector Crimp/Solder Attachment for RG6,
Compatible With Inner Conductor Smaller Than 0.030 Inch

RF Connectors
Technical Data Sheet PE4508

Assembly Instruction

.52
13.3

.18 .30
4.6 7.6

ASSEMBLY PROCEDURES

1. STRIP CABLE TO THE DIMENSIONS SHOWN, DO NOT NICK
CENTER CONDUCTOR OR BRAID.
2. PUSH CENTER CONDUCTOR FULLY INTO CONTACT AND
CRIMP WITH CRIMP TOOL.
3. FLARE BRAID AND INSERT THE BODY UNTIL IT SEATS.
4. SLIDE FERRULE OVER BRAID AND CRIMP WITH CRIMP TOOL.

CRIMP SIZE REQUIRED
• CONTACT: .068 [1.73] HEX CRIMP TOOL.
• FERRULE: .324 [8.23] HEX CRIMP TOOL.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male Connector Crimp/Solder Attachment for RG6, Compatible With Inner Conduc-
-
tor Smaller Than 0.030 Inch PE4508 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4508 REV 1.2 3
