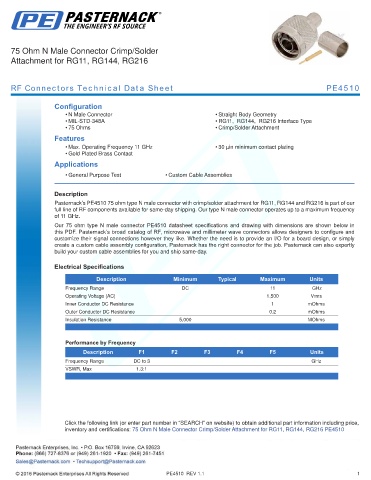

75 Ohm N Male Connector Crimp/Solder
Attachment for RG11, RG144, RG216

RF Connectors Technical Data Sheet PE4510

Configuration
• N Male Connector • Straight Body Geometry
• MIL-STD-348A • RG11, RG144, RG216 Interface Type
• 75 Ohms • Crimp/Solder Attachment
Features
• Max. Operating Frequency 11 GHz • 30 µin minimum contact plating
• Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4510 75 ohm type N male connector with crimp/solder attachment for RG11, RG144 and RG216 is part of our
full line of RF components available for same-day shipping. Our type N male connector operates up to a maximum frequency
of 11 GHz.
Our 75 ohm type N male connector PE4510 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
Operating Voltage (AC) 1,500 Vrms
Inner Conductor DC Resistance 1 mOhms
Outer Conductor DC Resistance 0.2 mOhms
Insulation Resistance 5,000 MOhms
.

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 3 GHz
VSWR, Max 1.3:1
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male Connector Crimp/Solder Attachment for RG11, RG144, RG216 PE4510

PE4510 REV 1.1 1
