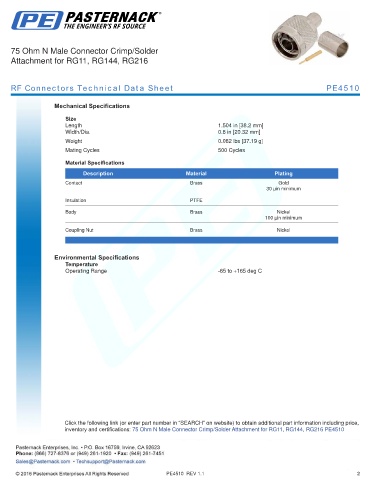

75 Ohm N Male Connector Crimp/Solder
Attachment for RG11, RG144, RG216
RF Connectors Technical Data Sheet PE4510
Mechanical Specifications
Size
Length 1.504 in [38.2 mm]
Width/Dia. 0.8 in [20.32 mm]
.
Weight 0.082 lbs [37.19 g]
.
Mating Cycles 500 Cycles
Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum
Insulation PTFE
Body Brass Nickel
100 µin minimum
Coupling Nut Brass Nickel
.
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male Connector Crimp/Solder Attachment for RG11, RG144, RG216 PE4510
PE4510 REV 1.1 2
